Experience with VISION

OB1

Outside Broadcast Unit 1

Unit 1

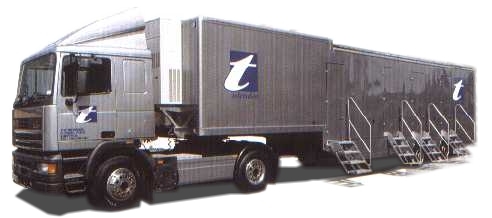

VEHICLE

Articulated unit, 2.5m x 18.5m (60ft) including tractor.
Trailor, 13.5m (44ft).

TENDER

Articulated unit, 2.5m x 15m (49ft) including tractor. (Can include on board twin-set generators, please ask for details).

CAPABILITY

16 camera/12 VTR serial digital component outside broadcast unit.

PRODUCTION

BTS DD20 32 input serial component digital vision mixer, 32x32 vision router on 5 aux. bus, 2x DSK, chroma key and DVE. (extended options available).

39x colour monitor stack, SDI TX and PV monitoring. 4:3 and 16:9 compatable.

Producer and AP position including 4 LCD monitors switchable to any source. Talkback from up to 12 sources

2 graphics positions for Aston Ethos and/or stats.

VTR AREA

12x VTR positions, analogue or digital formats, EVS and edit suite positions.

Each VTR is switchable (with sync) to any source with audio follow if required.

4 channel audio to every VTR.

ENGINEERING

4x Racks positions with full monitoring from every camera source. Engineering Manager/Racks position with SDI monitoring from every source.

Composite PAL, YUV or SDI outputs available. Wired for 16 BVP 570P digital cameras. 16:9 or 4:3 switchable.

SOUND/COMMS

48 channel AMEK with computer control/recall. 8 sub groups, 4 stereo channels, full monitoring and switching. Compressor limiter on every channel.

Extensive wired links talkback system capable of extending to 6 auxiliary stations, comprehensive 4 wire and 2 wire systems, 4 full external commentary positions for 1+1 operation, lighting Director/FM positions with vision switching, 4x TBU, ISDN compatible. 2 line by 24 extension telephone exchange, 4x duplex radio talkback channels.

MISCELLANEOUS

Walk on roof with safety rails.
Clark 10m automatic pump up mast.
24v auxiliary safety power.
3 integrated air-conditioning units up to 25kw of cooling.
125 Amp power supply required.
Satellite and off-air receivers.

VT area
Part of the VT area. Behind the picture is an Edit position and 5 VTR positions.
Engineering
Part of Engineering. In the picture are 2 Racking positions and to the left is the power controls.
Sound area
The sound area. 2 SDI monitors have been added to this arrangement since this picture was taken. The laptop (centre-right) controls the desk if requiired.
