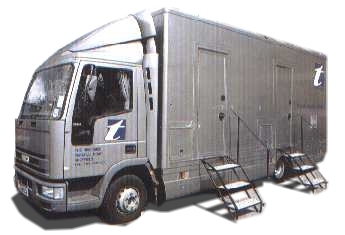

VEHICLE
Rigid unit, 2.5m x 8m (28ft), 7.5 tonne.
Height: 3.75m (12ft 3�)
TENDER
Rigid unit, 2.5m x 8m (28ft), 7.5 tonne.
Height: 3.16m (10ft 4�)
CAPABILITY
6 camera/5 VTR serial digital component outside broadcast unit.
PRODUCTION
Sony 12 input SDI vision mixer, 16x16 vision router on 2 aux. bus, 2x DSK, chroma key and DVE.
18x colour monitor stack, SDI TX and PV monitoring.
Director/vision mixer, PA/Aston Ethos graphics positions.
VTR AREA
5x VTR positions, analogue or digital formats, EVS position.
Each VTR is switchable (with sync) to any source with audio follow if required.
4 channel audio to every VTR.
ENGINEERING
2x Racks positions with full monitoring from every camera source. Engineering Manager position, SDI monitoring switchable from every source.
Composite PAL, YUV or SDI outputs available.
Wired for 6 BVP 570P digital cameras. 16:9 or 4:3 switchable.
SOUND/COMMS
24 channel AMEK mixer. 4 sub groups, 2 stereo channels, full monitoring and switching. Compressors/limiters on every channel.
Extensive wired links talkback system, comprehensive 4 wire and 2 wire systems, 2 full external commentary positions for 1+1 operation, 2x TBU, ISDN compatible. 2 line by 16 extension telephone exchange, duplex radio talkback channel.
MISCELLANEOUS
Walk on roof with safety rails.
2 integrated air-conditioning units.
32 Amp power supply required.
Satellite and off-air receivers.
|
