HIGH DEFINITION
OUTSIDE BROADCASTS


Vehicle
Overall length 14.5m, trailer 12.7m, width 2.5m
Capability
8 Camera
Production
20 input Blackmagic 2M/E HD-SDI vision mixer
26 image HD monitor stack
2 x JVC grade 1 TX/PV monitors
Graphics
2 x DSK capability, compatible with all current graphics systems

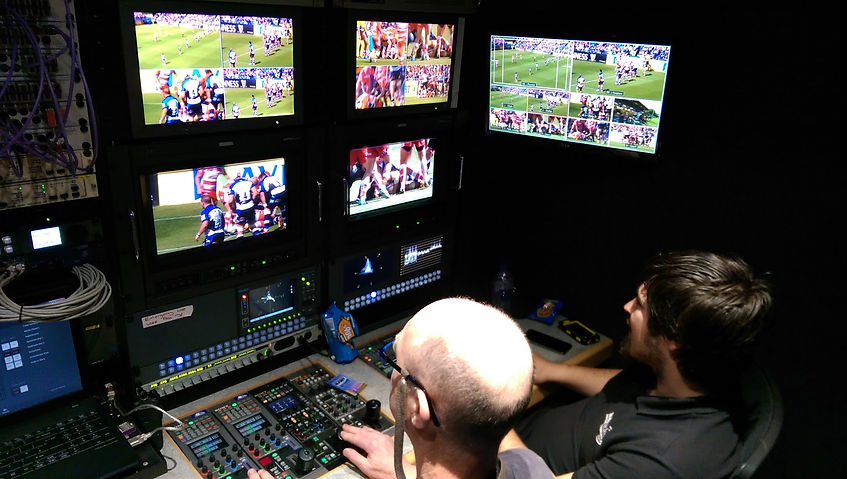

VTR
2 x 6 channel EVS positions
2 x VTR positions
Space for 3 x operators
HD monitoring throughout
Sound
Calrec Zeta-S digital audio desk – 42 fader
64 x Analogue mic / line inputs
64 x Analogue line outputs
32 x Stereo AES digital inputs & outputs
AES Audio matrix
Comms
Telex Cronus communications matrix
TBU, ISDN, RTS 2-wire system
3 x duplex radio talkback base stations
Engineering
2 x rack positions with grade 1 CRT monitor & scopes
40 x 40 HD/SD multiformat matrix
HD synchronisers
HD cross converters
Miscellaneous
Walk on roof with safety rails
24v auxiliary power
Requires 1 x 125 amp single phase power supply
