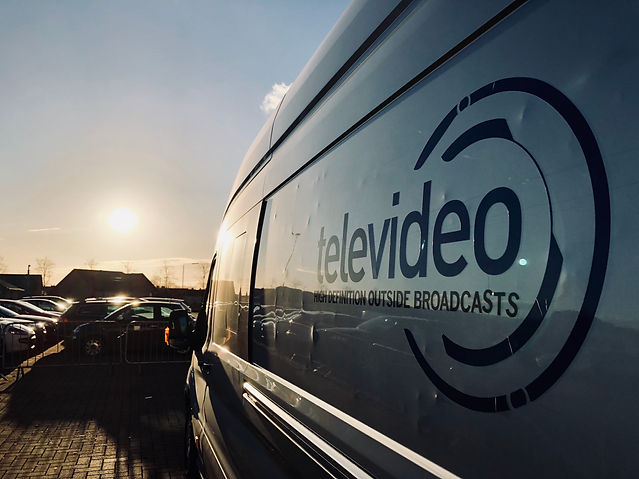

Vehicle

Overall length 7.6m, width 2m, height 3.3m
(dish stowed) 5m (dish operational)

Capability

• 4 camera production vehicle
• Dual path fully redundant KU band uplink

Graphics

2 x DSK capability,
compatible with all current graphics systems

Production

16 input 2M/E HD-SDI vision mixer
20 image HD monitor stack on 2 x 37” flatscreen displays
6 additional preview monitors

VTR

1 x 6 channel EVS positions, 2 x VTR positions
EVS X-file option
Final Cut Pro non-linear edit option

RF

1.5m Advent Antenna
2 x Xicom 400W HPAs
4 x Ericsson E8040 MPEG4 Encoders HD/SD DVB/DVBS2, QPSK/8PSK, 4:2:2/4:2:0, Dolby E, BISS encryption
2x Ericsson RX8200 receiver (BISS decryption) DVB-S, DVB-S2, QPSK/8PSK
Freesat and Freeview off-air receivers

Sound

Yamaha 01V96 16-channel digital sound desk – fully configurable inputs and outputs
TSL DolbyE embedded audio monitor unit Telex Zeus 24 Port Digital Communications Matrix
2 x TBU with GSM cellphone
G722 and Systembase ISDN option Paradise satellite comms option
2 x duplex radio talkback base stations

Engineering

Racks positions with grade 1 monitor
40 x 40 HD/SD multiformat matrix
2 x HD synchronisers
2 x HD cross converters
DolbyE encode/decode capability
Fibre capability for long-range HD video feeds RF camera option

Miscellaneous

10kVA on-board generator
32A single phase power required
Full 10 minute UPS backup
