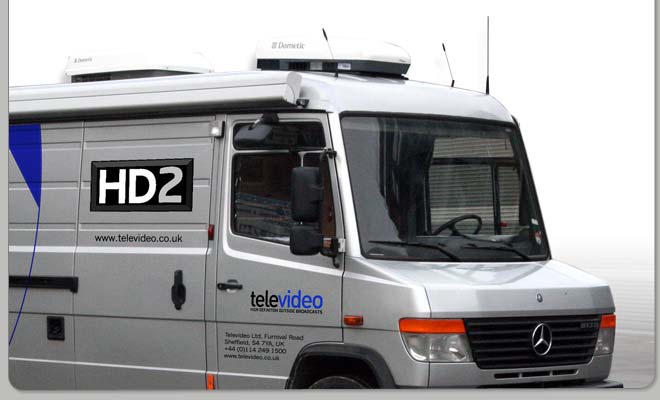

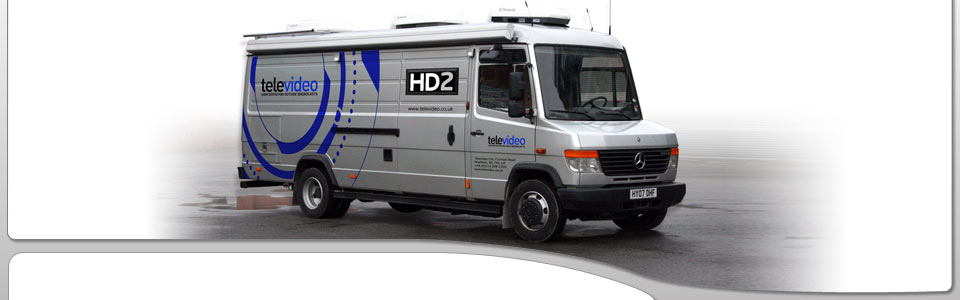

Vehicle
Overall length 7.2m, width 2.65m, height 3.3m

Capability
Formats - 1080i, 1080p, 720p, 576sd

8x Sony HDC 2500 High Definition Cameras running on Fibre or Triax cable

Various VTR Combinations: 2x HD or SD VTRS & 2x EVSXT 6ch hard disk replay; 6x HDCAM / DIGIBETA VTR’s or 10x XDCAM HD Disk Recorders

VIZ RT, Clarity, Aston, DEKO or other graphics options available

Blackmagic 2M/E Vision Mixer

Vision

• 96x96 Probel Sirius Multi format HD vision Matrix. 20 external Multi format vision sources
• AXON video glue and processing
  2x AXON HD Synchronisers available
• 2x ZANDAR 16 way Multi view LCD Panels.
• 2x JVC HD Tube Monitors across 2 racks positions
• 2x Hamlet MS9000 Colour HD Scopes
• 3x Quad LCD Engineering preview monitors.
• 16 Outgoing Matrix fed vision feeds in HD/SD & Composite.
• TSLTallyman tally system with 8 external tally sources and feeds to integrate with a match or presentation OB vehicle
• BBC Greyscale Camera Line up Chart.

Production

• 2x 50” Sony 1980x1080 Plasma Display
• 2x Zandar 16 way HD Multiview processors feeding 32 virtual monitors with Dynamic under monitor displays, Red and Green tallies and GPS driven timecode clocks
• Each monitor is scalable in size and aspect ratio and movable according to clients requirements
• 3 x Riedel 12 key talkback panels with stalk mics and/or headsets
• Genelec Bi amped audio Monitoring
• Emergency cut panel
• ISO Record vision Switching panels
• VGA, Serial, Audio and Video tie lines on desk for all client layouts

Sound

Calrec M Series 24 Channel Stereo Mixing Desk

• 4 Stereo Sub Groups
• 3 Mono Auxiliary mixes
• 1 Stereo Auxiliary Mixes
• 28 Channel and Subgroup Direct Clean Outputs
• Mix Minus Clean Feed Outputs
• Riedel Artist 32 Port Digital Communications Matrix
• 7x Digital 12 channel Talkback panels in Truck
• 1x Lighting Directors panel and vision switcher
• 18x “4 wire” circuits for communication with the outside world

• Probel 64x64 Stereo Audio Matrix With Analogue and AES Digital Audio Inputs and Outputs
• Genelec Program Monitoring
• Alice 10 way transmission monitoring switcher/ PPM feeding Auxiliary Loudspeakers
• 2 x Raycom Radio Talkback Base Stations
• 2x JVC TM10 Switchable HD Vision Preview Tube Monitors
• CD Player
• 360 Systems instant Replay Hard Disk Grams Player
• 8 x 8 way Mil Multicore sockets on tailboard
• 24 bi-sex XLR tailboard Tie lines
• 8 x AES Matrix ins and outs in AES and Analogue on Tailboard
• 12 Channel Sony Camera Remote Audio Gain Control Unit
